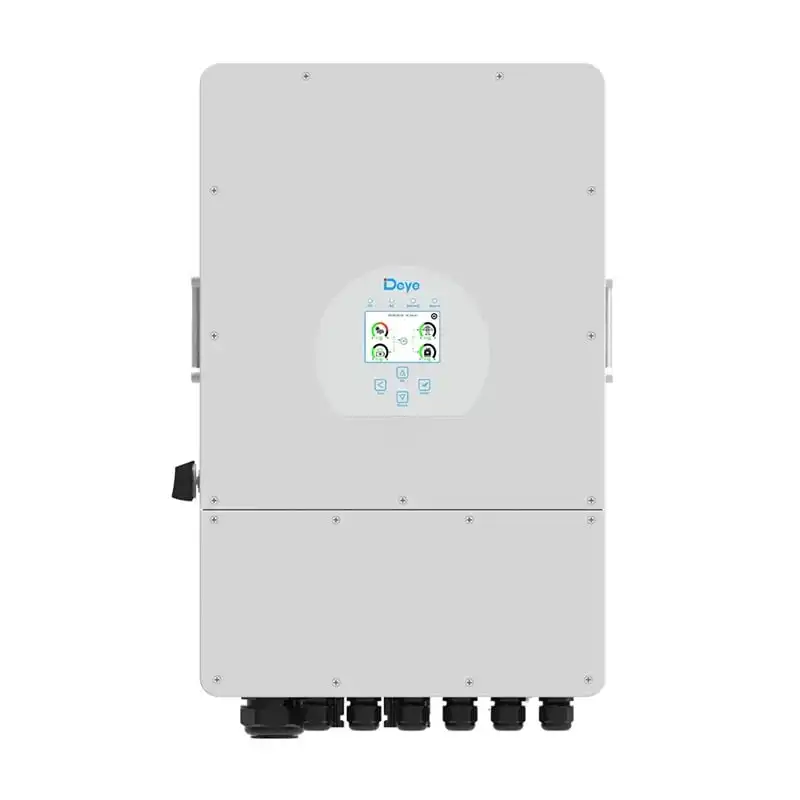

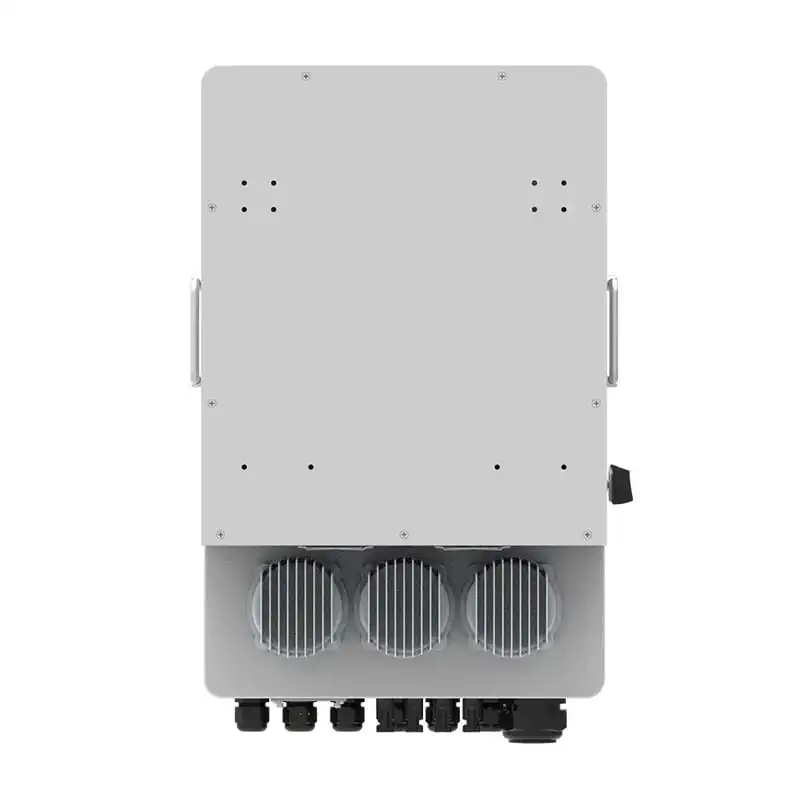

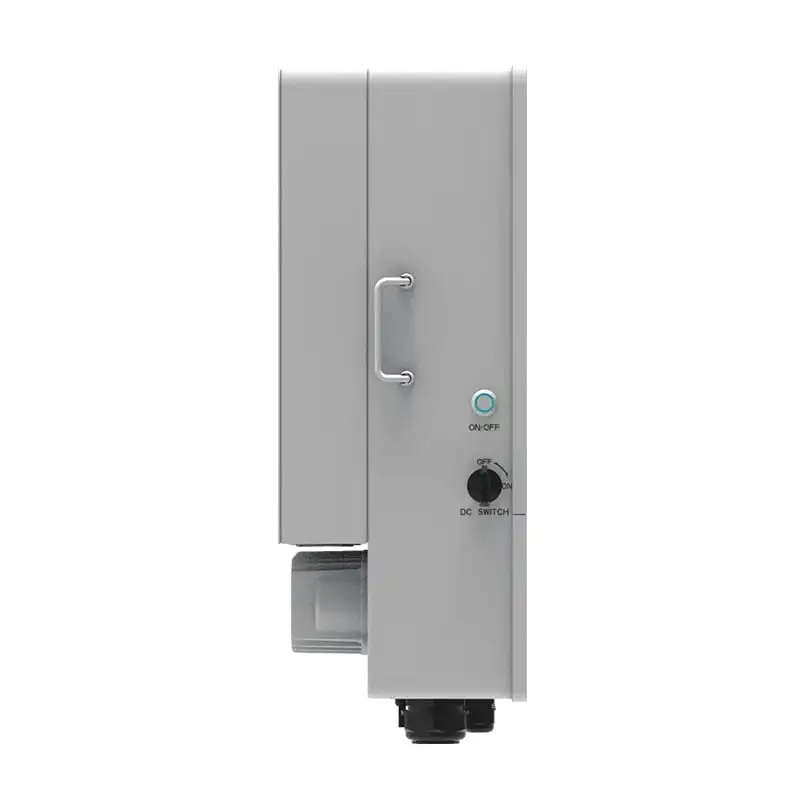

Deye SUN-12K-SG04LP3-EU 5KW 8KW 10KW 12KW Three Phase 2 MPPT Solar Hybrid Inverter Wifi Smart 48V IP 65 hybrid solar inverter

Product Paramenters

Model	SUN-5K -SG04LP3-EU	SUN-8K -SG04LP3-EU	SUN-10K -SG04LP3-EU	SUN-12K -SG04LP3-EU
Battery Input Data
Battery Type	Lead-acid or Li-lon
Battery Voltage Range (V)	40~60
Max. Charging Current (A)	120	190	210	240
Max. Discharging Current (A)	120	190	210	240
External Temperature Sensor	Yes
Charging Curve	3 Stages / Equalization
Charging Strategy for Li-Ion Battery	Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)	6500	10400	13000	15600
Rated PV Input Voltage (V)	550 (160~800)
Start-up Voltage (V)	160
MPPT Voltage Range (V)	200-650
Full Load DC Voltage Range (V)	350-650
PV Input Current (A)	13+13			26+13
Max. PV I (A)	17+17			34+17
No.of MPP Trackers	2
No.of Strings per MPP Tracker	1			2+1
AC Output Data
Rated AC Output and UPS Power (W)	5000	8000	10000	12000
Max. AC Output Power (W)	5500	8800	11000	13200
AC Output Rated Current (A)	7.6/7.2	12.1/11.6	15.2/14.5	18.2/17.4
Max. AC Current (A)	11.4/10.9	18.2/17.4	22.7/21.7	27.3/26.1
Max. Continuous AC Passthrough (A)	45
Peak Power (offff grid)	2 time of rated power, 10 S
Power Factor	0.8 leading to 0.8 lagging
Output Frequency and Voltage	50/60Hz; 3L/N/PE 220/380, 230/400Vac
Grid Type	Three Phase
DC injection current (mA)	THD<3% (Linear load<1.5%)
Effiffifficiency
Max. Effiffifficiency	97.60%
Euro Effiffifficiency	97.00%
MPPT Effiffifficiency	99.90%
Protection
Integrated	PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Integrated		Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,Output Shorted Protection, Surge protection
Output Over Voltage Protection	DC Type II/AC Type III
Certififications and Standards
Grid Regulation	CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98,
Grid Regulation		VDE 0126-1-1, RD 1699, C10-11
Safety EMC / Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range (℃)	-40~60℃, >45℃ derating
Cooling	Smart cooling
Noise (dB)	<45 dB
Communication with BMS	RS485; CAN
Weight (kg)	33.6
Size (mm)	422W x 699.3H x279D
Protection Degree	IP65
Installation Style	Wall-mounted
Warranty	5 years

product deye sun 12k sg04lp3 eu 5kw 8kw 10kw 12kw three phase 2 mppt solar hybrid inverter wifi smart 48v ip 65 hybrid solar inverter-1

Features

1. Colorful touch LCD, IP65 protection degree
2. 6 time periods for battery charging/discharging
3. Max. charging/discharging current of 120A
4. Frequency droop control, Max.16pcs parallel
5. DC couple and AC couple to retrofit existing solar system
6. Support storing energy from diesel generator
7. 48V low voltage battery, safe and reliable
8. Unique Smart Load application and Grid peak shaving function
9. 4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well
