Model | GESS-5.12KWH | GESS-10.24KWH | GESS-15.36KWH | GESS-20.48KWH | GESS-25.6KWH |
Single module capacity | 5.12KWH | ||||
Module number | 1/PCS | 2/PCS | 3/PCS | 4/PCS | 5/PCS |
Total capacity | 5.12KWH | 10.24KWH | 15.36KWH | 20.48KWH | 25.6KWH |
Standard voltage | 51.2V | ||||
Working voltage | 43.2V-57.6V | ||||
Standard discharge current | 100A | 200A | 300A | 400A | 500A |
Standard charge current | 50A | 100A | 150A | 200A | 250A |
Suggested DOD | 80% | ||||
Humidity | 20%-60% | ||||
Installation | Stacked | ||||
IP rating | IP20 | ||||
Communication | CAN/RS485/RS232(4G WiFi/bluetooth/4G optional) | ||||
N.W./unit | 50kg | 80kg | 120kg | 150kg | 190kg |
Rated Power | 5000W |
INPUT | |
Voltage | 230VAC |
Selectable Voltage Range | 170-280VAC(For personal computers);90-280VAC(For home appliances) |
Frequency Range | 50Hz/60Hz(Auto sensing) |
OUTPUT | |
AC Voltage Regulation(Battery.Mode) | 230VAC±5% |
Surge Power | 11000VA |
Efficiency(Peak) | Up to 93.5% |
Transfer Time | 10ms (For personal computers);20ms(For home appliances) |
Waveform | Pure sine wave |
BATTERY | |
Battery Voltage | 48VDC |
Floating Charge Voltage | 54VDC |
Overcharge Protection | 63VDC |
Solar Charger & AC charger | |
Maximum PV Array Open Circuit Voltage | 500VDC |
Maximum PV Array Power | 5500W |
MPPT Range @ Operating Voltage | 120-450VDC |
Maximum Solar Charger Current | 80A |
Maximum AC Charger Current | 60A |
Maximum Charger Current | 80A |
ENVIRONMENT | |
Humidity | 5% to 95% Relative Humidity(Non-condensing) |
Operating Temperature | -10℃ to 50℃ |
Storage Temperature | -15℃ to 60℃ |
item | value |
Brand Name | Grandtech |
Model Number | GSBM-10.24KWH |
Battery Size | Stacked |
Place of Origin | China |
Guangdong | |
Weight | 80kg |
The charging ratio | >95% |
The discharge rate | >95% |
Storage Type | normal |
Anode Material | LFP |
Application | Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts |
GRANDTECH

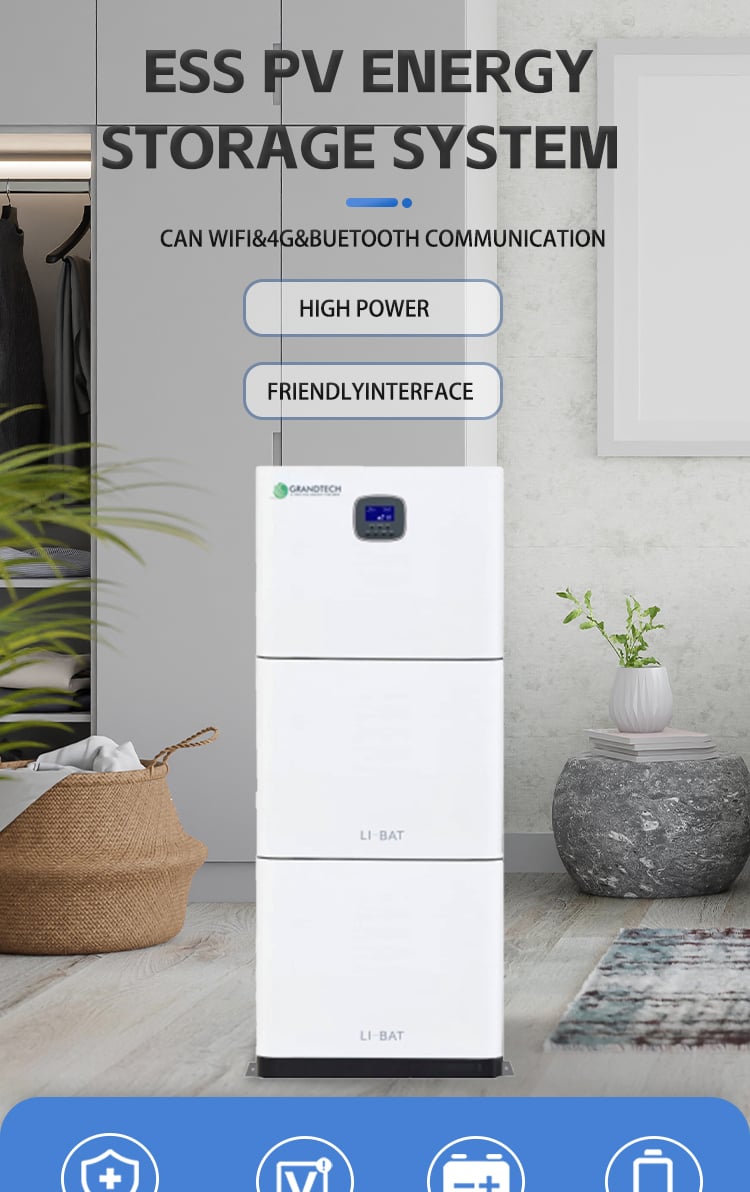

The manufacturing facility wholesale Solar power electric battery Stackable solar electric battery 51.2v 15.26Kwh Lifepo4 Lithium Solar Body solar Electric battery is the embodiment of development, benefit functionality. This stackable solar is a advanced innovation developed towards offer individuals possessing a reliable method towards acquire power. It is actually a 51 Lifepo4.2v that 15.26Kwh Lithium Body solar suitable Electric battery for utilize within homes, industrial facilities workplaces.
This progressed manufacturing facility wholesale Solar power electric battery Stackable solar electric battery 51.2v 15.26Kwh Lifepo4 Lithium Solar Body solar Electric battery is the ideal response individuals that are stressed over power scarcity cost-effectiveness. It is particularly developed towards harness store energy solar for potential utilize. Which implies that although there's a billed power outage or even if the grid drops, there's no have to issue on your own along with being remove coming from your very own personal energy source. This body is produced towards provide you a lasting option traditional power.
The manufacturing facility wholesale Solar power electric battery Stackable solar electric battery 51.2v 15.26Kwh Lifepo4 Lithium Solar Body solar Electric battery is actually extremely ingenious flaunts a myriad of functions which can easily create it obtain discovered off their electric battery energy bodies. Very initial, it is produced coming from high-quality Lifepo4 Lithium, understood for its own resilience, lengthy electric battery lifestyle energy higher thickness. Which implies that individuals can easily obtain a lasting reliable power that might endure the stress of daily utilize.

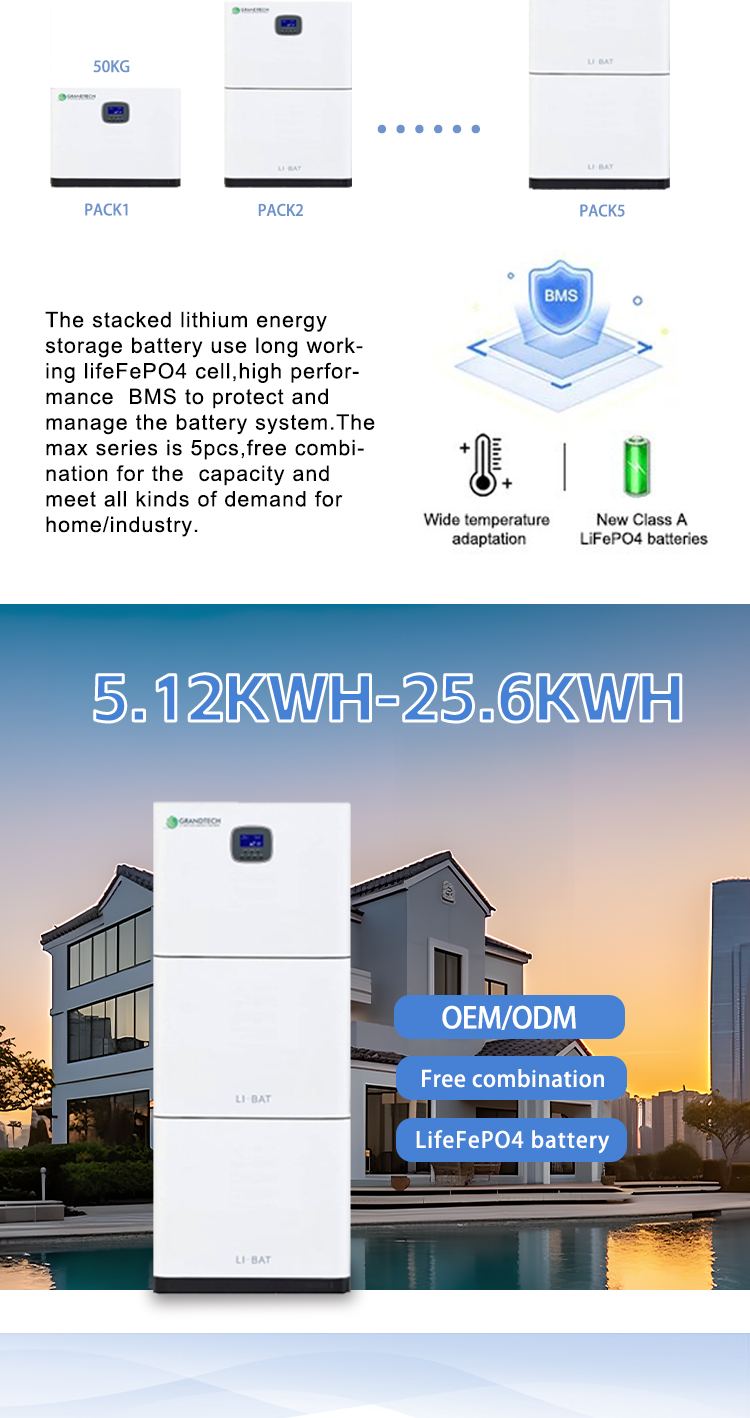

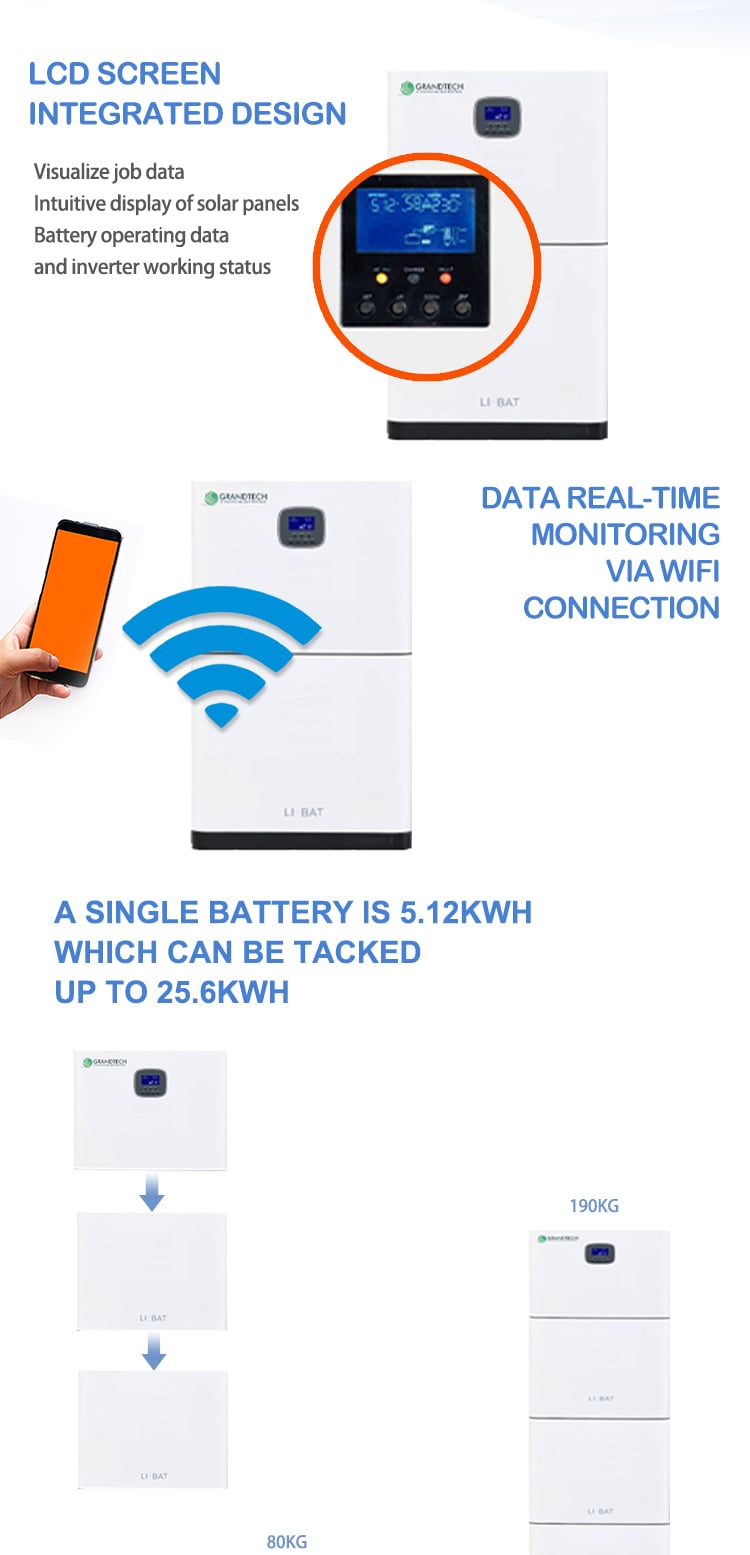

Additionally, this manufacturing facility wholesale Solar power electric battery Stackable solar electric battery 51.2v 15.26Kwh Lifepo4 Lithium Solar Body solar Electric battery is stackable, an characteristic that implies it is simple towards keep set up. You can easily pile several electric batteries with each other to create a big energy body, making it perfect for industrial requests industrial. This specific element furthermore allows you towards transfer keep the electric battery load, creating it an incredibly choice practical those that have to relocate a good deal.

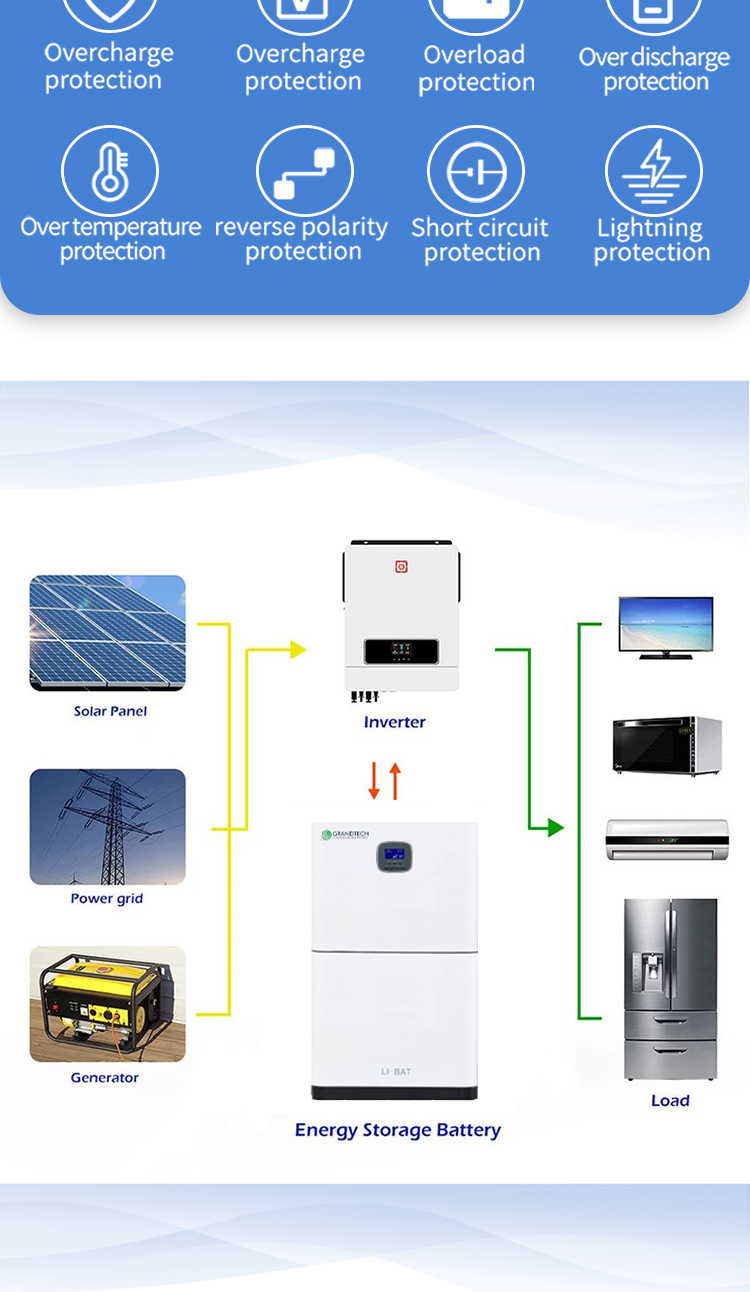

The 51.2v voltage rack up is one more include that creates this manufacturing facility wholesale Solar power electric battery Stackable solar electric battery 51.2v 15.26Kwh Lifepo4 Lithium Solar Body solar Electric battery an important choice for individuals. It is appropriate for a range of solar board bodies, making it easy towards set up utilize along with current solar bodies. This body likewise can easily with each other be utilized along with an inverter towards transform the DC power kept right in to the electric battery load towards AC energy, making it appropriate for utilize along with home devices for the house in addition to various other items being digital.
