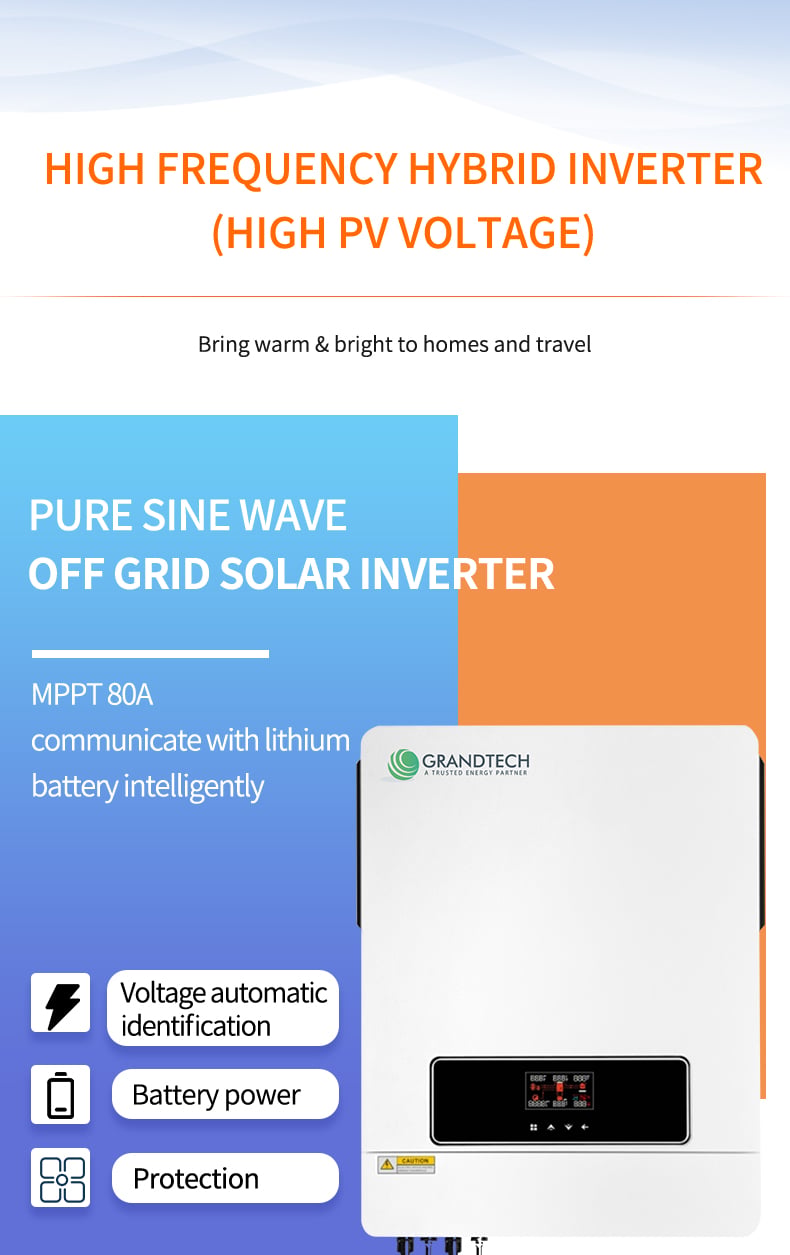

Grandtech 4500W 24V Hybrid Inverter MPPT 230V Pure Sine Wave Solar Inverter 220V Hybrid Solar Inverter For Solar System

Product Description
Specification
Model GTIS-7KW GTIS-8KW GTIS-10KW
Maximum PV Input Power 7000W 8000W 10000W
Rated Output Power) 7200W/7200VA 8200W/8200VA 10200W/10200VA
Maximum Solar Charging Current 160A 160A 160A
Nominal DC Voltage/Maximum DC Voltage 360VDC/500VDC
Start-up Voltage/Initial Feeding Voltage 90VCD/120VCD
Maximum DC Voltage 90~450VDC
Number of MPPT Trackers/Maximum Input Current 1/27A
Nominal Output Voltage 200/230/240VAC
Output Voltage Range 195.5~253VAC
Nominal Output Current 31.3A 35.6A 44.3A
Power Factor >0.99
Feed-in Grid Frequency Range 49~51Z±1Hz
Maximum Conversion Efficlency(DC/AC) 98%
Full Load 7200W 8200W 10200W
Maximum Main Load 7200W 8200W 10200W
Maximum Second Load(battery mode) 2400W 2733W 3400W
Main Load Cut Off Voltage 44VDC 44VDC 44VDC
Main Load Return Voltage 54VDC 54VDC 54VDC
AC Start-up Voltage/Auto Restart Voltage 120-140VAC/180VAC
Acceptable Input Voltage Range 90-280VAC or 170-280VAC
Maximum AC Input Current 40A 40A 50A
Nominal operating frequency 50/60Hz
Surge power 14400W 16400W 20400W
Maxmum DC Voltage 500VDC
MPPT Voltage Range 90VDC~450VDC
Number of MPPT Trackers/Maximum Input Curent 1/27A
Nominal Output Voltage 220/230/240VAC
Oulput Waveform Pure sine wave
Emiciency(DC to AC) 94%
Nominal DC Voltage 48VDC 48VDC 48VDC
Maximum Solar Charging Current 160A 160A 160A
Maximum AC Charging Current 140A 140A 140A

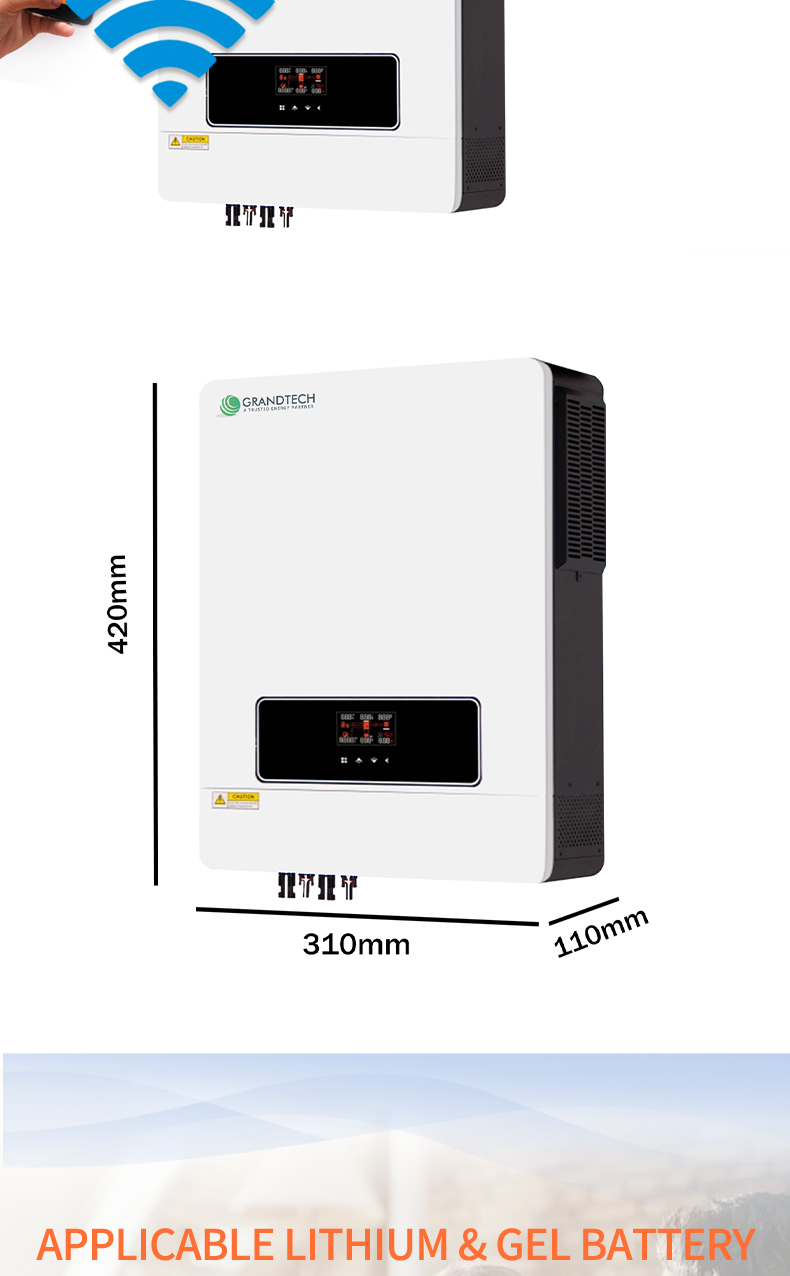

Dimension,DxWxH(mm) 420*310*110
Net Weighl(kgs) 13.1 14.2 14.5
Grass Weight(kgs) 14.1 15.7 16
Communication Port RS232/WIFI/Remove LCD/GPRS
Operating Temperature -10~50℃
item value
Place of Origin China
Guangdong
Brand Name Grandtech
Model Number GTIS-7KW
System Energy Other
Input Voltage 90-280VAC or70-280VAC
Output Voltage 195.5~253VAC
Output Current 31.3A
Output Frequency 50/60Hz
Output Type Single, Triple, Multiple
Size 420*310*110
Type DC/AC Inverters, AC to AC
Inverter Efficiency >95%
Certificate CE,ISO,UN38.3,ROHS,FCC&ETL,PSE
Warranty one year
Weight 13.1

Product Description
Grandtech 4500W 24V Hybrid Inverter MPPT 230V Pure Sine Wave Solar Inverter 220V Hybrid Solar Inverter For Solar System factory
Grandtech 4500W 24V Hybrid Inverter MPPT 230V Pure Sine Wave Solar Inverter 220V Hybrid Solar Inverter For Solar System details
Grandtech 4500W 24V Hybrid Inverter MPPT 230V Pure Sine Wave Solar Inverter 220V Hybrid Solar Inverter For Solar System manufacture
Grandtech 4500W 24V Hybrid Inverter MPPT 230V Pure Sine Wave Solar Inverter 220V Hybrid Solar Inverter For Solar System factory
Grandtech 4500W 24V Hybrid Inverter MPPT 230V Pure Sine Wave Solar Inverter 220V Hybrid Solar Inverter For Solar System factory
Grandtech 4500W 24V Hybrid Inverter MPPT 230V Pure Sine Wave Solar Inverter 220V Hybrid Solar Inverter For Solar System manufacture
Grandtech 4500W 24V Hybrid Inverter MPPT 230V Pure Sine Wave Solar Inverter 220V Hybrid Solar Inverter For Solar System manufacture
FAQ
1. who are we?
We are based in Sichuan, China, start from 2018,sell to Mid East(40.00%),Eastern Europe(20.00%),Africa(20.00%),South Asia(20.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Wall Mounted Energy Storage, Stacked Energy Storage, Solar Inverters

4. why should you buy from us not from other suppliers?
null

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,FCA;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;

Language Spoken:English,Chinese,Spanish,Russian

Introducing, the Grandtech’s 4500W 24V Hybrid Inverter MPPT 230V Pure Sine Wave Solar Inverter - the perfect solution for all your solar system needs. It was created to seamlessly convert solar energy into electric power for your house or office. With its 4500W power output, it can offer sufficient power to your devices, ensuring that you can continue to work well even when there is no conventional power available. It consists of a maximum power point tracking (MPPT) system, which automatically optimizes the input voltage to ensure maximum solar power transformation. Consequently, you can be assured of a consistent and reliable power from your solar panel to your inverter. This was built to provide a stable and clean energy output through the use of pure sine wave technology. Pure sine wave technology guarantees the protection of your electronic devices that and appliances from possible energy surges and overloads, thus prolonging their lifespan. It is an ideal choice for solar systems ranging as much as 5000W. It can be easily linked to any 24V solar panel with its two solar input connectors. Along with its advanced level digital display, you can monitor and keep an eye on the performance of your inverter at any time. It was designed with efficiency in mind which makes it one of the most efficient solar inverters for sale in industry today. Furthermore, it has a built-in overload feature that automatically shuts down the inverter in case of overloading. It was manufactured from the highest standard of quality, making sure every component was carefully examined and tested during production. This gives you the self-confidence to depend on this product as the ideal answer to your solar system needs.

×
