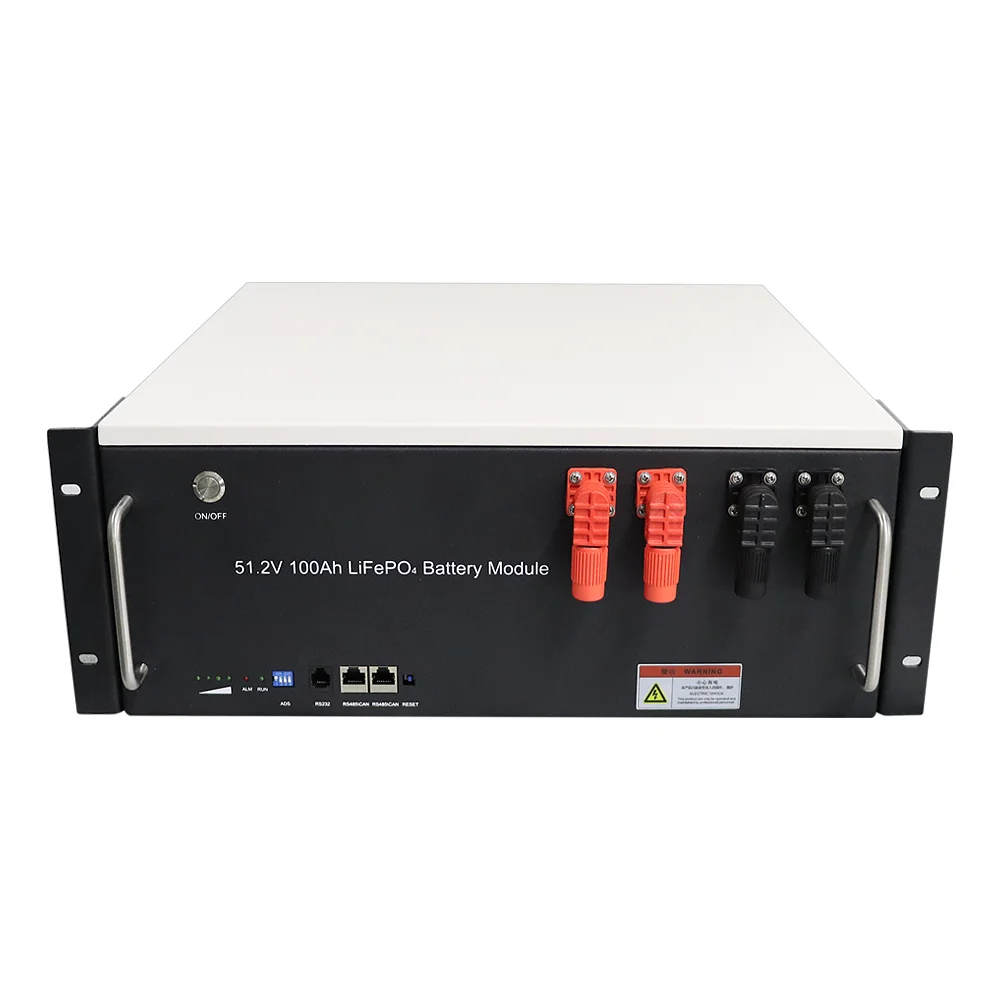

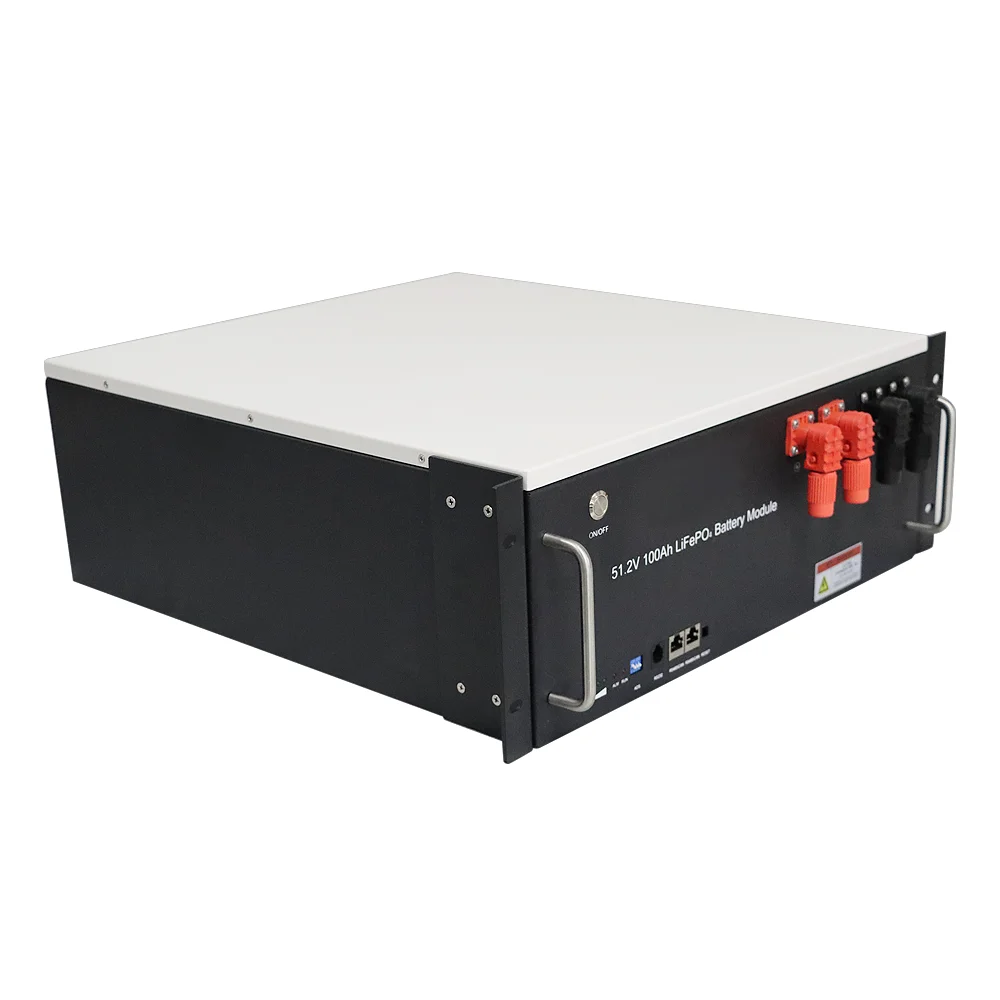

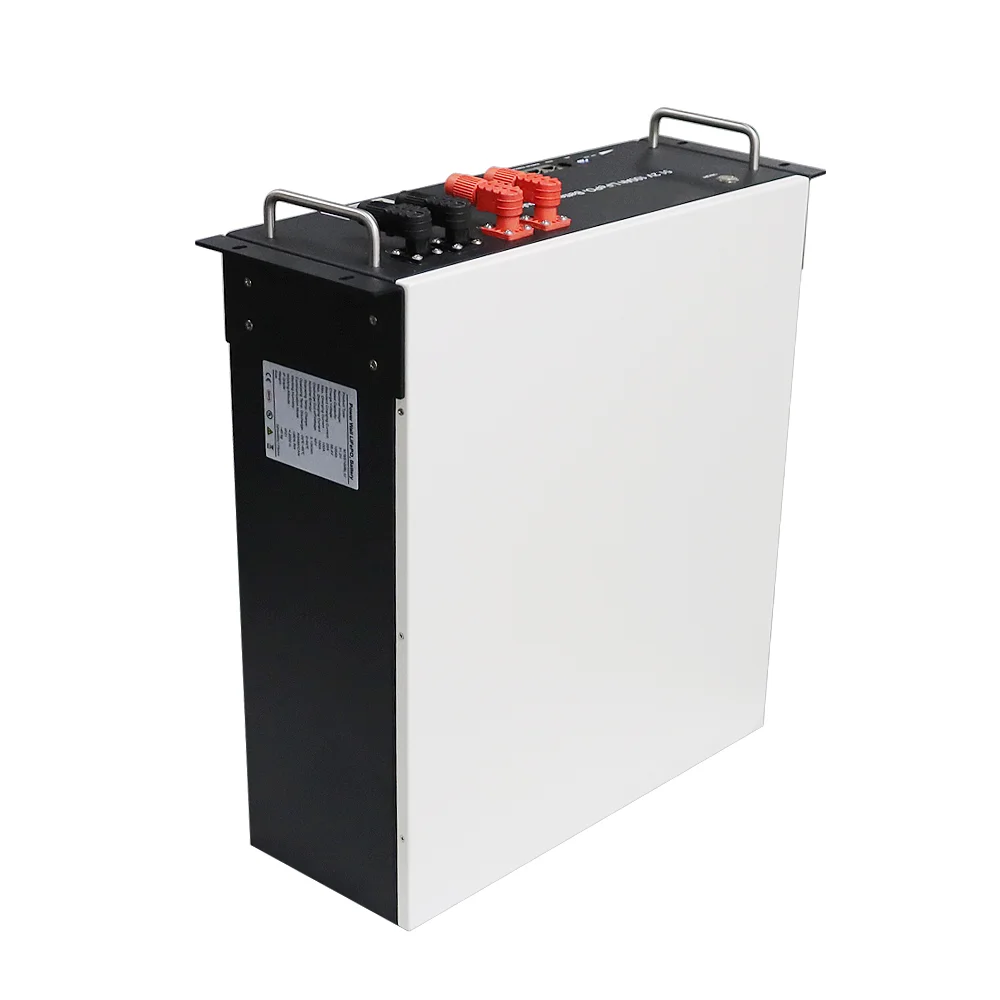

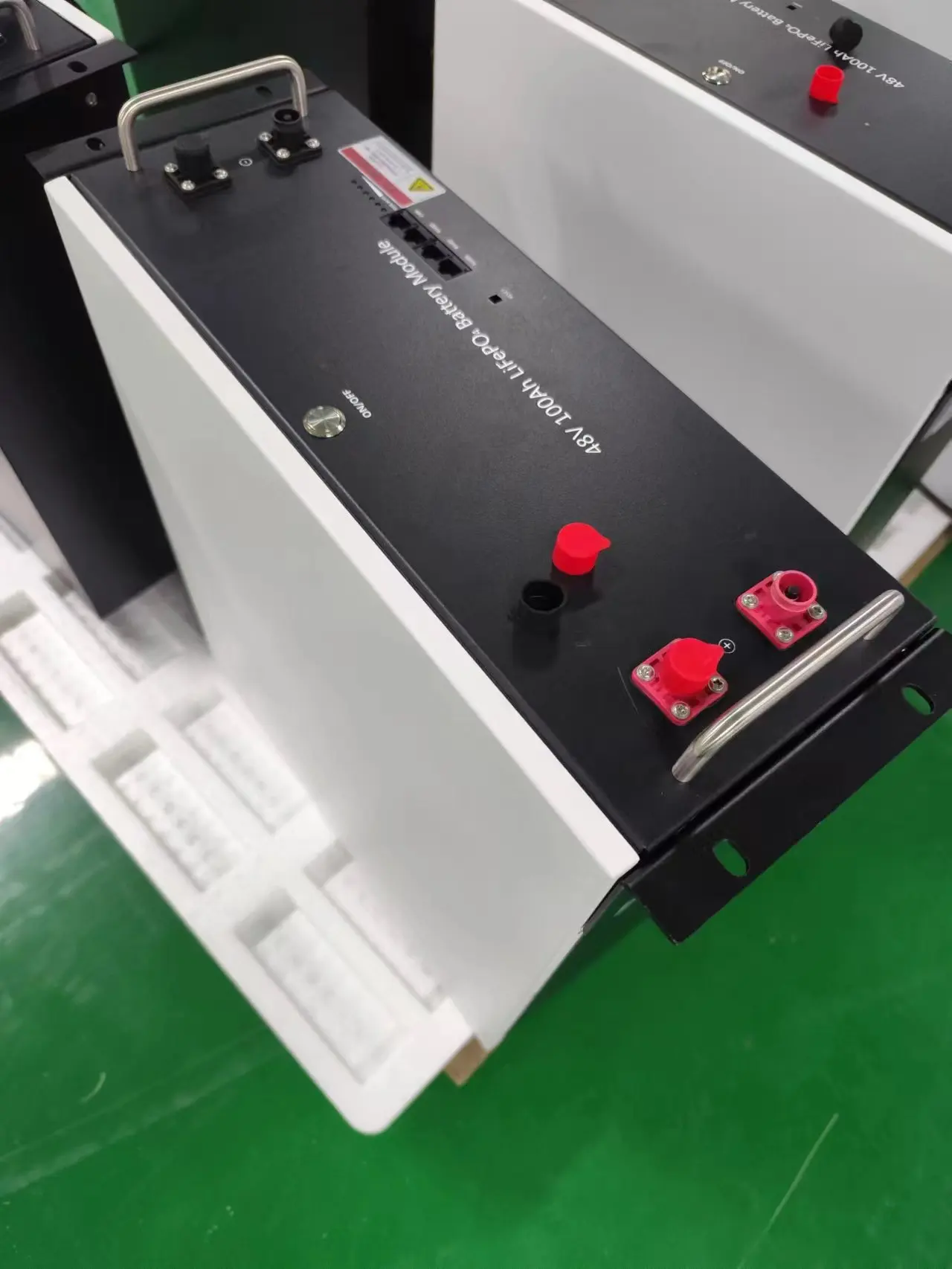

Product model
|
GT15S100BL-U
|
GT16S100BL-U
|
GT16S200BL-U
|
GT16S280BL-U
|
|||
|
Cells in series
|
15S
|
16S
|
16S
|
16S
|
|||
|
Rated energy(KWh)
|
4.8
|
5
|
10.24
|
14.3
|
|||
|
Rated voltage (V)
|
48
|
51.2
|
51.2
|
51.2
|
|||
|
Charging Voltage (V)
|
54.7
|
58.2
|
58.2
|
58.2
|
|||
|
Discharge cut-off voltage (V)
|
40
|
42
|
42
|
42
|
|||
|
Standard Charge Current (A)
|
20
|
20
|
20
|
56
|
|||
|
Maximum Charging Current (A)
|
100
|
100
|
100
|
100
|
|||
|
Maximum Discharge Current (A)
|
100
|
100
|
100
|
100
|
|||
|
Cycle life
|
≥ 6000 times @ 80% DOD, 25 °C
|
||||||
|

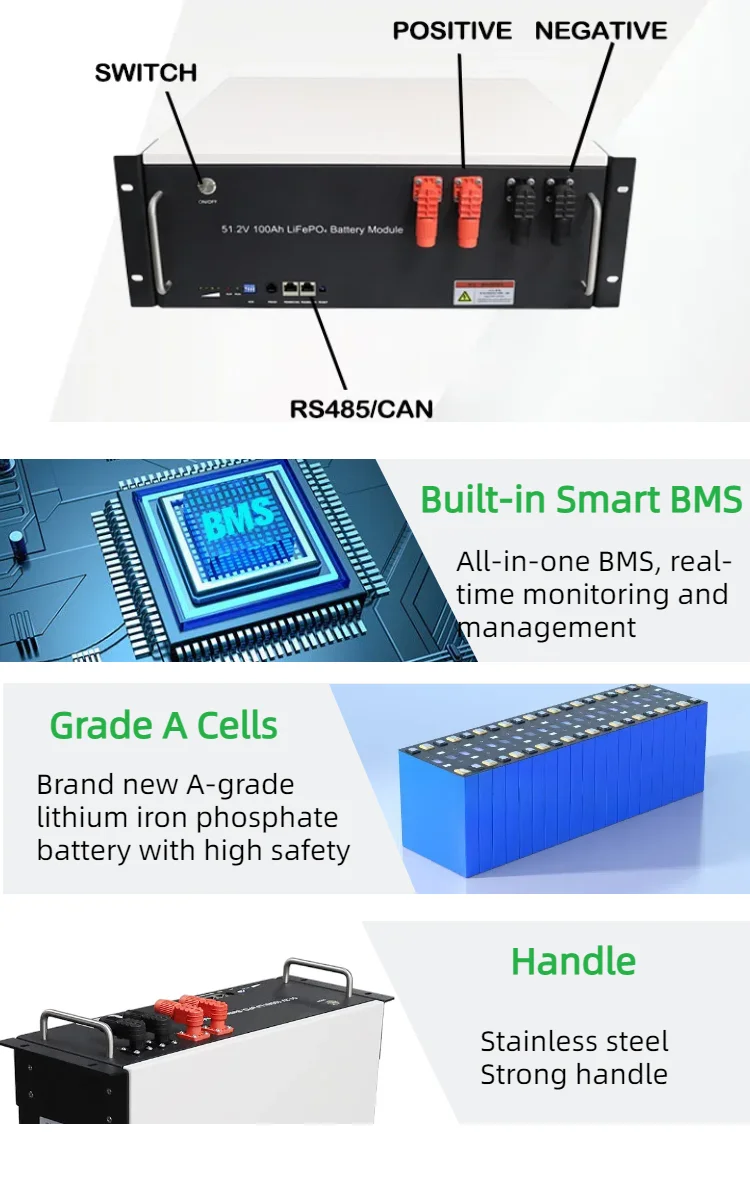

Methods of Communication
|
RS485/CAN
|
||||||
|
Charging temperature
|
0~60℃
|
0~60℃
|
0~60℃
|
0~60℃
|
|||
|
Discharge temperature
|
-10~65℃
|
-10~65℃
|
-10~65℃
|
-10~65℃
|
|||
|
Product Dimensions (L×W×Hmm)
|
515×493×175
|
515×493×175
|
630×490×255
|
768×450×275
|
|||
|
Net Weight (Kg)
|
42
|
45
|
88
|
105
|
|||
|
Packing Dimensions (L×W×Hmm)
|
550×523×230
|
550×523×230
|
710×570×455
|
865×550×345
|
|||
|
Gross Weight (Kg)
|
45
|
48
|
103
|
130
|
|||
SI CHUAN GRANDTECH NEW ENERGY TECHNOLOGY CO., LTD.Has been a professional and trusted new energy products supplier and service provider since 2016. We specialize in providing high-quality battery service and solar systems to businesses. we have been concentrating on offering the integrated power solution to our worldwide customers.
